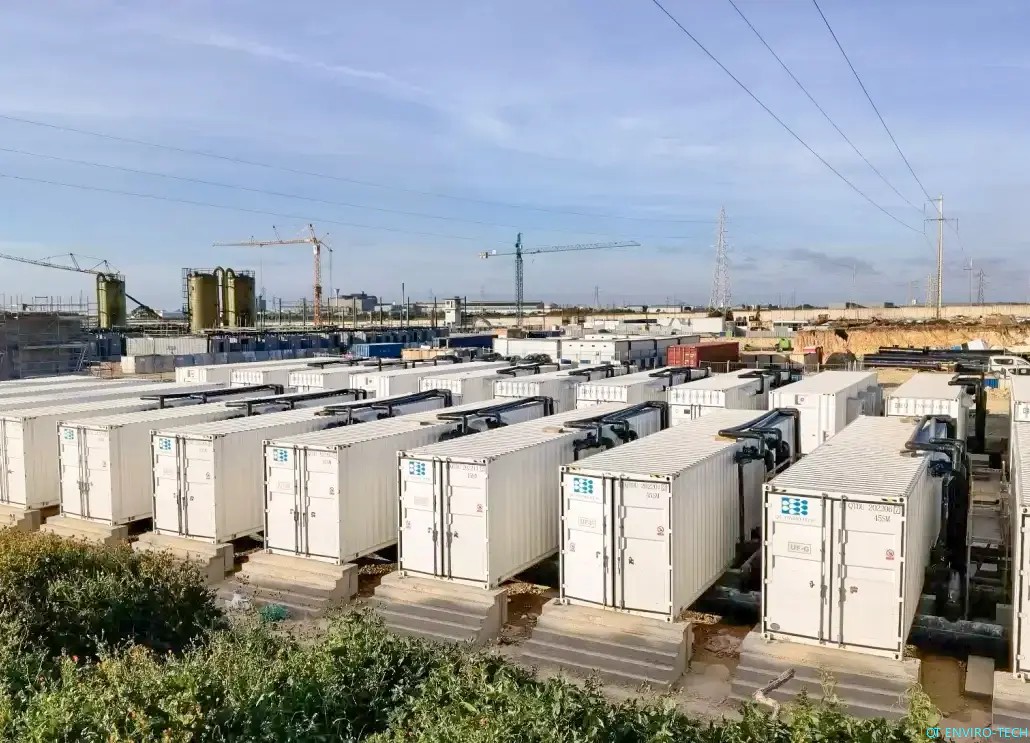

When evaluating a containerized desalination system, the product-water rating alone does not tell you how much concentrate the site must handle. An underestimated brine flow can leave discharge pipework, holding tanks, or downstream treatment undersized. Start with the steady-state water balance: brine flow = RO feed flow − permeate flow, using consistent units and measurements taken across the same system boundary.

If only the required permeate output and recovery rate are known, calculate brine flow as Q_b = Q_p × (1 − R) / R, where recovery, R, is expressed as a decimal. This gives the normal RO concentrate flow, not necessarily the container’s total wastewater discharge. Backwash, flushing, cleaning, and other drains need separate accounting before you size the site’s discharge facilities.

Define which outlet you are calculating

A container is a physical enclosure, not automatically a complete hydraulic boundary. Depending on the design, pretreatment may be inside or outside it, flushing water may come from a separate tank, and multiple waste connections may leave the package. First establish whether the required figure is membrane concentrate flow, combined container discharge, or total site wastewater.

For a basic RO membrane section operating steadily, define:

• Q_f: feed entering the membrane section, in m³/h.
• Q_p: permeate leaving that section, in m³/h.
• Q_b: concentrate leaving that section, in m³/h.
• R: recovery, calculated as Q_p / Q_f.

The usual volumetric balance is Q_f = Q_p + Q_b. It assumes negligible accumulation and sufficiently small density effects for the required accuracy. For precise accounting, particularly with concentrated saline streams, use the mass balance: ρ_fQ_f = ρ_pQ_p + ρ_bQ_b, where ρ is the density of each stream at its measurement conditions.

Do not subtract final export-water flow from intake flow unless that boundary also accounts for pretreatment losses, internal water use, storage changes, and any other incoming or outgoing streams.

Calculate from the data available

All three common calculation routes below describe the same steady operating condition. Use the route supported by the clearest operating or design data.

Worked example: a fixed permeate requirement

Consider an illustrative calculation requiring 100 m³/h of RO permeate at 40% recovery. These are hypothetical calculation inputs, not a product specification or operating result.

Convert recovery to a decimal: R = 0.40. Then calculate feed flow:

Q_f = 100 / 0.40 = 250 m³/h

Subtract permeate from feed:

Q_b = 250 − 100 = 150 m³/h

The direct formula gives the same answer: 100 × 0.60 / 0.40 = 150 m³/h. At this operating point, the concentrate flow is 1.5 times the permeate flow. It is not 60% of the permeate flow: the unrecovered fraction applies to the feed.

At 24 operating hours, the theoretical concentrate volume is 3,600 m³/day. Actual daily volume must reflect operating hours, shutdowns, changing setpoints, and separate waste events. A continuous-duty calculation should not be used unchanged for an intermittently operated plant.

Recovery changes the answer—but identify what stays fixed

Higher recovery reduces concentrate volume at a fixed permeate output because less feed is needed to produce the same amount of product water. The relationship is nonlinear, so a modest recovery change can materially alter the discharge estimate.

These values illustrate arithmetic only; they do not establish an acceptable recovery range. Feasible recovery depends on feed chemistry, temperature, scaling potential, membrane limits, hydraulic conditions, and the treatment design. A recovery suitable for one brackish-water feed cannot simply be transferred to a seawater system.

Where feed flow remains fixed instead, increasing recovery raises permeate output while reducing brine flow. State the fixed variable whenever comparing proposals or operating scenarios. Otherwise, apparent differences in discharge performance may come from different calculation assumptions.

Verify readings before accepting the result

A measured feed-minus-permeate calculation is only as reliable as its instrumentation and timing. Use stable operating readings rather than pairing a startup feed value with a later permeate value. If production varies, calculate volumes from synchronized flow totals over the same interval.

1. Locate each meter on the process diagram. An intake meter upstream of filtration does not necessarily measure RO feed.
2. Confirm units and measurement basis. Convert L/min, m³/h, and daily totals consistently, and check whether instruments report actual volumetric flow or a compensated value.
3. Check operating status. Identify open bypasses, flushing valves, recycle lines, and any tank filling or emptying within the boundary.
4. Compare calculated and measured concentrate. Investigate discrepancies against meter accuracy and the plant’s defined balance tolerance rather than assuming one reading is correct.

Subtraction can magnify relative uncertainty when the difference between two measured flows is small. For example, a high-recovery section may have a relatively small reject stream compared with its feed and permeate streams. A dedicated concentrate meter can improve verification, provided its range, installation, and calibration suit the service.

Recycle and multiple passes need separate balances

With concentrate recycle, the flow entering the membranes includes both fresh feed and recirculated liquid. Membrane concentrate before the recycle split is therefore not the same as final concentrate discharged from the package. Place the balance around the complete recycle loop to calculate net discharge, and use a separate internal balance for membrane hydraulics.

For two-pass RO, do not simply add reject flows from both passes. Second-pass reject may return to an upstream tank rather than leave the plant. Follow each stream to its destination and count only external outlets when calculating site discharge. The same principle applies to interstage flows in a staged array.

Separate normal brine flow from waste-handling demand

How is brine handled from a containerized desalination system? Normally, concentrate is routed through a designated outlet to an approved discharge route, collection system, or further treatment process. Containerization simplifies equipment packaging; it does not determine which disposal route is environmentally or technically acceptable.

Possible arrangements include a permitted marine discharge, acceptance by a sewer or treatment facility, evaporation where site conditions allow, or additional concentration and solids-management processes. Each option has different constraints. Receiving-water conditions, discharge chemistry, available land, downstream capacity, and local authorization determine feasibility.

Prepare a stream schedule rather than treating every drain as continuous brine:

• RO concentrate: normally continuous during production; record minimum, normal, and maximum operating flows.
• Filter backwash: intermittent and potentially much higher than its daily average; record event flow, duration, and frequency.
• Membrane flushing: identify the water source and discharge destination to avoid omission or double-counting.
• Cleaning waste: characterize separately because cleaning chemicals and pH may require segregation or treatment.

For daily accounting, multiply steady concentrate flow by actual operating hours and add the separately calculated event volumes. For pipework or transfer-pump sizing, evaluate credible simultaneous peak flows. An average daily volume cannot establish the required instantaneous hydraulic capacity.

Holding-tank sizing also depends on discharge availability. Where outflow stops during a restricted period, calculate accumulated inflow over that period, including credible waste events. Reserve volume, level controls, and contingency allowances should follow the project’s operating and design criteria rather than an arbitrary percentage.

Check concentration alongside volume

A lower brine flow does not automatically make disposal easier. Higher recovery generally increases dissolved-salt concentration and may increase scaling risk. For an approximate salt balance using consistent concentration units:

C_b = (Q_fC_f − Q_pC_p) / Q_b

If permeate salinity is small relative to feed salinity, this simplifies to C_b ≈ C_f / (1 − R). At 40% recovery, the idealized concentration factor is approximately 1.67. This estimate neglects precipitation and other salt additions or removals; use density-aware mass balances where greater precision is required.

Bulk salinity alone does not establish discharge acceptability. Depending on the route, assessment may also require temperature, pH, residual treatment chemicals, suspended solids, and specific dissolved constituents. Conductivity can support operational checks, but converting it to salinity requires an appropriate relationship for the water composition and temperature.

Use the operating envelope for equipment and energy checks

The normal brine calculation is a starting point, not the complete design duty. Evaluate the combinations of feed conditions, recovery, production rate, and train operation that produce maximum discharge. Startup and flushing may create a separate hydraulic case. Keep justified design allowances separate from calculated process flows so that margins are not unknowingly applied twice.

Brine flow also affects energy-recovery equipment where fitted. However, flow alone cannot determine recoverable power: concentrate pressure, downstream backpressure, equipment efficiency, and the hydraulic arrangement are also needed. Increased disposal-line backpressure can affect operation, so confirm the permitted concentrate-outlet pressure before selecting downstream pipework or treatment equipment.

A useful technical submission should identify the balance boundary, rated permeate output, corresponding feed flow and recovery, net concentrate outlet, and any internal recycle. It should also provide the operating range, intermittent waste schedule, expected brine composition, and outlet-pressure limits. With those values aligned, the discharge system can be checked against actual process duties rather than a single nominal container capacity.
