fastRO® C Seawater Desalination
QTENVIRO-TECH:2024-05-14

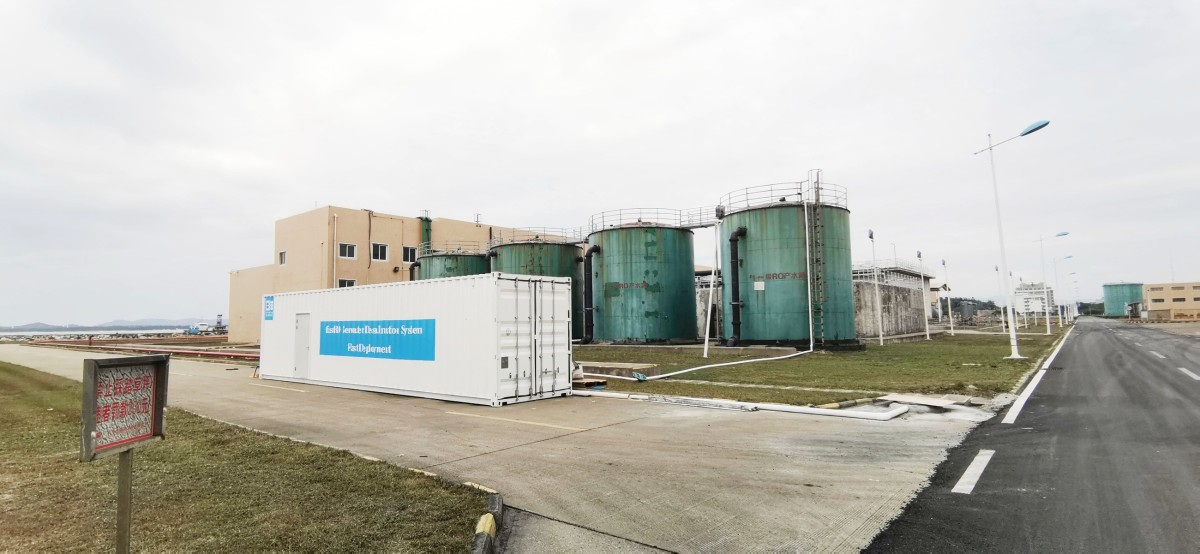

Container Desalination

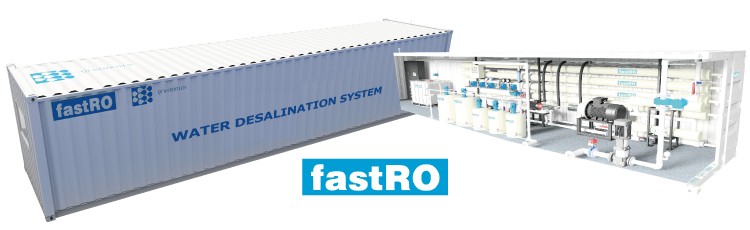

fastRO® C is a containerized RO (reverse osmois) systems, available for both indoor and outdoor use. All the desalination components are pre-assembled in 1 to 2 containers, including the piping and control systems, which considerably reduces the on-site installation workload and time required for effective fresh water production. The design and manufacturing of the system comply with ASME, ASTM, IEC, and other internationally recognized industry standards. The fresh water capacity of fastROC is 50 to 2,000 m3/day.



The desalination process is based on Reverse Osmosis ( technology The process starts by filtering particles from feed water through dual media filter DMF, No need to use DMF if the feed water turbidity is lower than 0.5 NTU), then entering the high pressure pump F resh water is pressurized out through the membrane, while concentrated water is discharged after pressure relief energy recovering (by energy recovery device).




Container Desalination


Extensive applications

  • Construction site

  • Factory facilities

  • Hotels and Resorts

  • Other customized applications


Technical specifications


Technical Data

Unit

C50

C120

C250E

C350E

C500E

C1000E

Rated Product Flow 1)

m3 /h

2.3

5.5

11.4

16.4

23

45.5

Rated Recovery Rate 1)%354045454545

Container Size

ft20
2040404040+40

Energy Consumption 3

kWh/M3

5.93

5.21

2.73

2.70

2.64

2.58

Installed Power 4)

kW18.73750.56186.5173.5


Notes

1) The rated product flow and rated recovery rate are based on the design feed of 3 6 000 ppm and 20 C standard seawater Contact us  for Higher product flow and higher recovery rate.

2) The normal operating system pressure shall be above the minimum pressure Contact us if t he system might work over 70 bar.

3) The power consumption is based on the design feed of 35 000 ppm and 20 C standard seawater, but does not include the consumption by the intake pump, product supply pump, Heating, ventilation, and air conditioning.

4) Installed power includes feed pump, high pressure pump ( energy recovering device ( cleaning in place ( pump, dosing pump and lights.

5) Other voltage frequency is available on request.
